HEADPHONE AMP COMPLETE KIT

A complete kit for a replica of the MXR™ Headphone Amp, a simple guitar headphone amplifier for quiet practice. You supply the enclosure.

About the effect

The MXR™ Headphone Amp is a simple headphone amplifier for guitar, similar in design to the MXR™ Microamp™. The GGG project version adds a footswitch that sends the output either to your amp (line) or to your headphones, so it can live in your effects chain, plus an optional effects loop on the input so a speaker simulator or EQ can shape only the headphone signal. The loop uses Switchcraft enclosed jacks because they are smaller and easier to fit. Thanks to Alfonso Hermida for the schematic information.

What you get

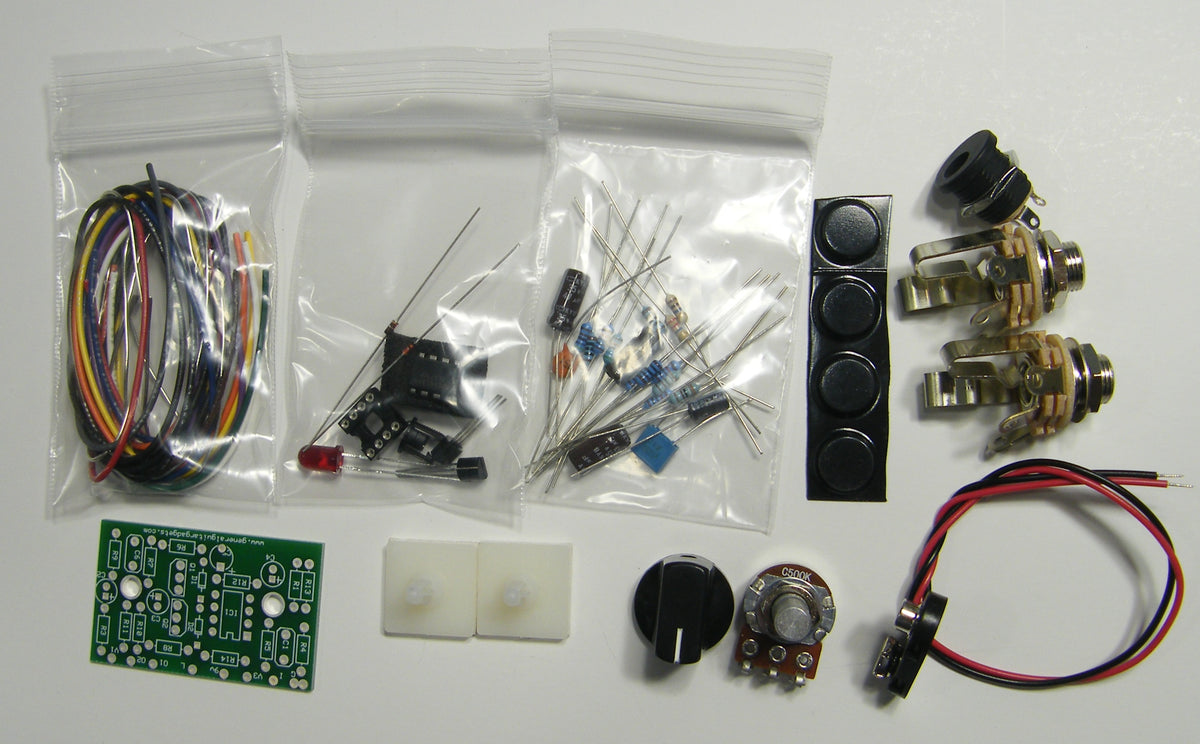

The complete kit includes the parts to build the headphone amp; you supply the enclosure. Choose the jacks you need:

• No Jack: the kit without input, output or DC jacks.
• DC Jack: adds a DC power jack.
• In & Out: adds input and output jacks.
• In Out & DC: adds input, output and DC power jacks.

Build resources

• Complete build instructions, schematic and parts layout
• Bill of materials (PDF)
• Parts layout and wiring diagram with loop and bypass options (PDF)
• General build instructions (PDF)
• General information about our kits

Trademarks mentioned here belong to their owners, not General Guitar Gadgets.
