IBANEZ™ TUBE SCREAMER™ (TS-808™) REPLICA COMPLETE KIT WITH DIODE SELECTOR OPTION

A complete kit to build the ITS8, a replica of the Ibanez™ Tube Screamer™ TS-808™, with a 6-way diode clipper selector so you can pick from six different clipping sounds.

About the effect

The TS-808™ is the most famous overdrive of all time, known for its smooth, mid-forward drive that pushes a tube amp nicely. The ITS8 replica leaves out the original's FET switching circuit and uses a true bypass switch with an LED indicator instead, which doesn't affect the tone. The board supports several variations and mods, and the project page also includes layouts for building a Boss™ SD-1™ and an MXR™ ZW-44™ on the same PCB.

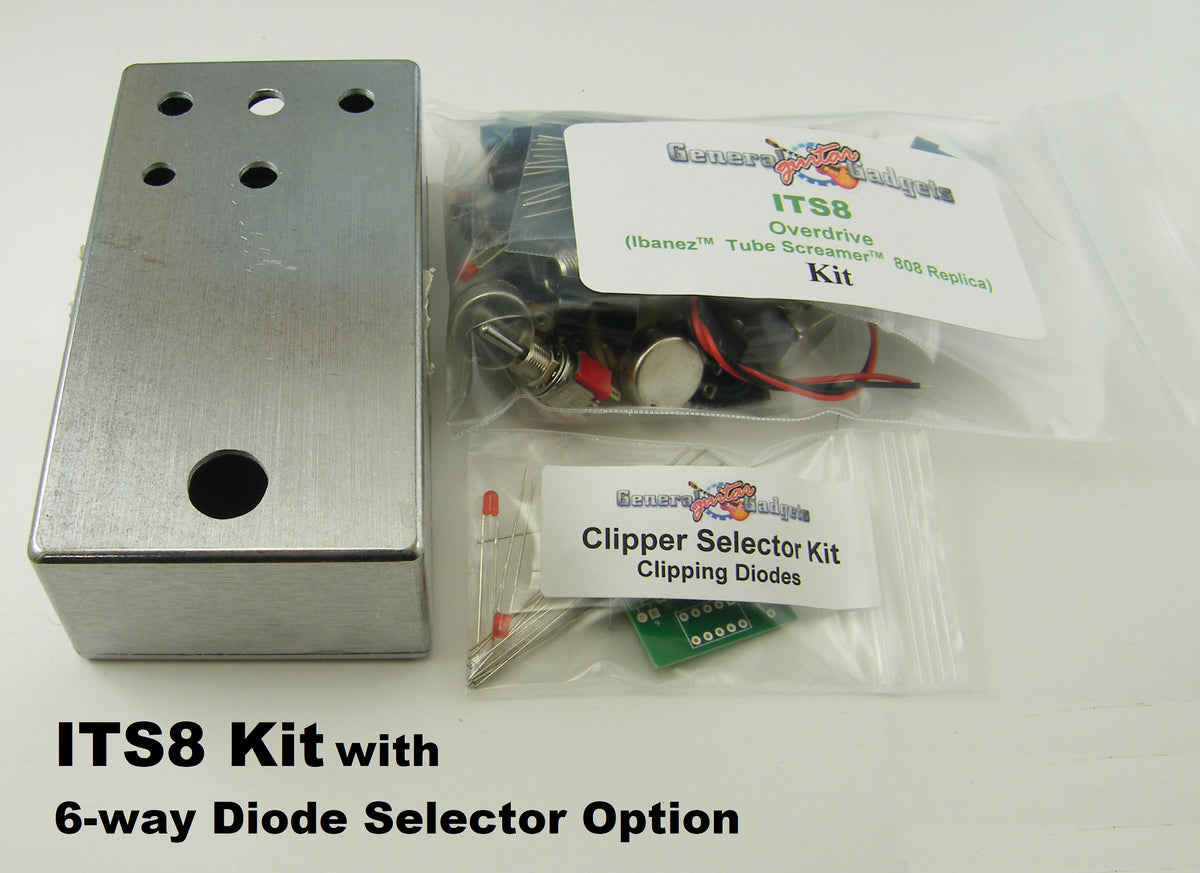

This kit adds a 6-way diode clipper selector switch, and the 125B enclosure is pre-drilled for it. Photos include this kit in the Twisted Screamer casing (see Related Products).

What you get

All the parts and materials you need to build one, including the PCB. Diodes included for the 6-way switch:

• 6 - 1N914
• 2 - 1N34A (germanium diodes)
• 2 - 2N7000 (MOSFET transistors)
• 3 - BAT46
• 2 - 1N4001
• 2 - Red LED

Enclosure options:

• 125B: pre-drilled for the controls and the 6-way switch. Note that there is no battery option for this enclosure.
• No Enclosure: all the kit parts without the enclosure, for builders using their own box.

ITS8 Mods Option: choose the kit with the modification option to get the parts for the Keeley Mod or the "Very Expensive Boutique" Mod, plus extra ICs and clippers to fine tune your sound:

• 1 - LF353P IC
• 1 - RC4558P IC
• 1 - 8-pin socket
• 1 - 1 meg audio taper pot (Drive)
• 1 - 1k resistor
• 1 - 2k4 (2.4k) resistor
• 1 - 10k resistor
• 1 - 20k resistor
• 1 - 0.1uF capacitor
• 1 - 0.18uF capacitor
• 1 - 0.22uF capacitor

Also builds

• Boss™ SD-1™ (layout on the project page)
• MXR™ ZW-44™ (layout on the project page)

Build resources

• Complete instructions for this kit
• Parts layout and wiring diagram with 6-way switch (PDF)
• ITS8 modifications (PDF)
• 125B enclosure specification sheet
• General information about GGG kits
• Sound Sample 1 - ITS8 with "Very Expensive Boutique Mods"
• Sound Sample 2 - ITS8 with "Very Expensive Boutique Mods"
• ITS8 with Expensive Boutique Mods YouTube Sample 1

Trademarks mentioned here belong to their owners, not General Guitar Gadgets.
