CAPACITOR SELECTOR ADD-ON KIT

A 6-way capacitor selector add-on that lets you dial in six different values for an input cap or tone cap in your effect, using a tiny PCB-mount rotary switch.

About this kit

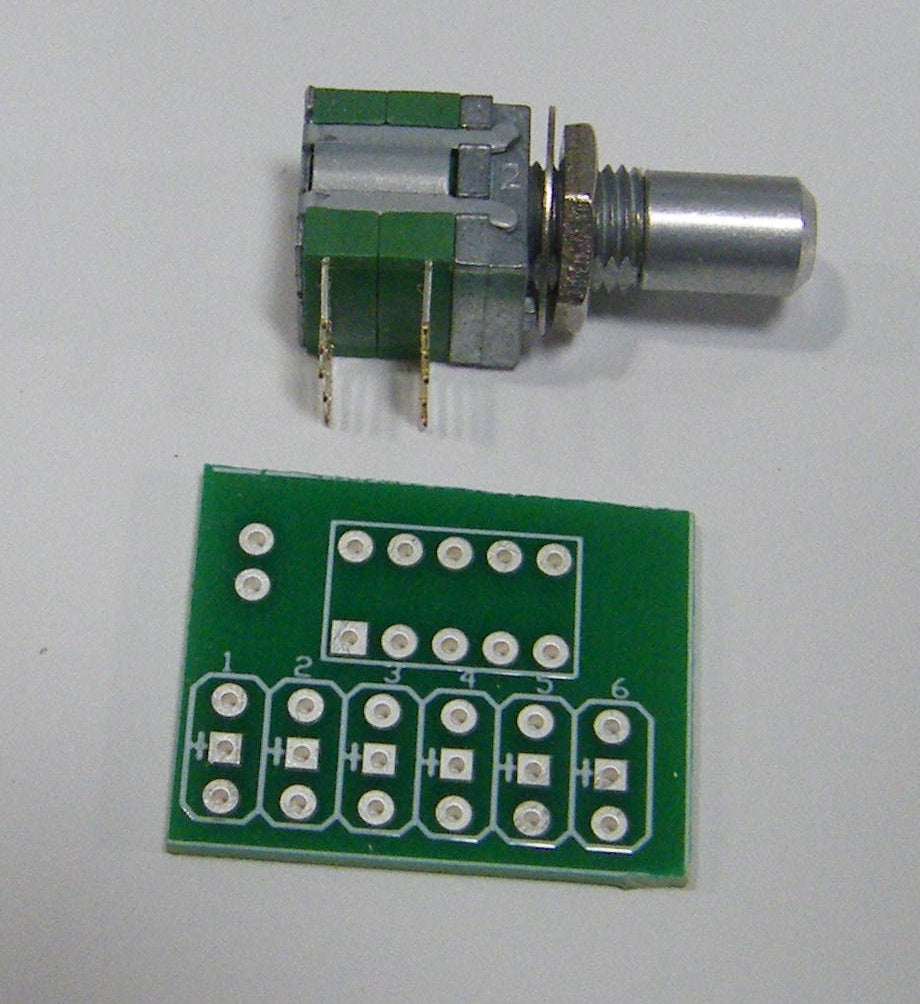

This add-on pairs a small PCB with a 6-way PCB-mount rotary switch that has room for six capacitors. It's a great extra modification for input caps or tone control caps, and the project page notes it's especially handy for the input cap on a Range Master and on simple boosters and fuzz tones. There are many other uses too: you can load resistors instead of caps if that's what your circuit needs.

The switch mounts in a 9/32" hole (potentiometer size) in your enclosure, so it drops in alongside your existing controls.

What you get

• PCB And Switch: the selector PCB and the PCB-mount 6-way rotary switch. Supply your own capacitors.
• PCB, Switch and 6 Caps: the PCB and switch plus a set of six capacitors.

Specs

• PCB size: 2.8cm x 2.1cm
• Switch fits a 9/32" (pot-size) hole
• Six positions for capacitors (or resistors)

Build resources

• Capacitor selector project page with instructions for using this kit
• Capacitor selector instructions (PDF)
