DUAL BUFFER KIT

A complete kit for two IC-powered buffers on a single circuit board, made mainly to turn our A/B/Y kit into an active, switchable buffered splitter.

About this kit

As your signal chain grows longer with more pedals and cable, treble starts to roll off. A buffer fixes that, and when you split a signal, buffering keeps each branch clear and full. The Dual IC Buffer board carries two independent buffers that can split one input or handle two separate inputs and outputs.

The kit is mostly intended for use with the A/B/Y kit, but it also works in multiple-switch-loop boxes, 4-way buffered splitters and plenty of other routing projects. There are so many possibilities that it is offered just as an active add-on, with no enclosure options.

What you get

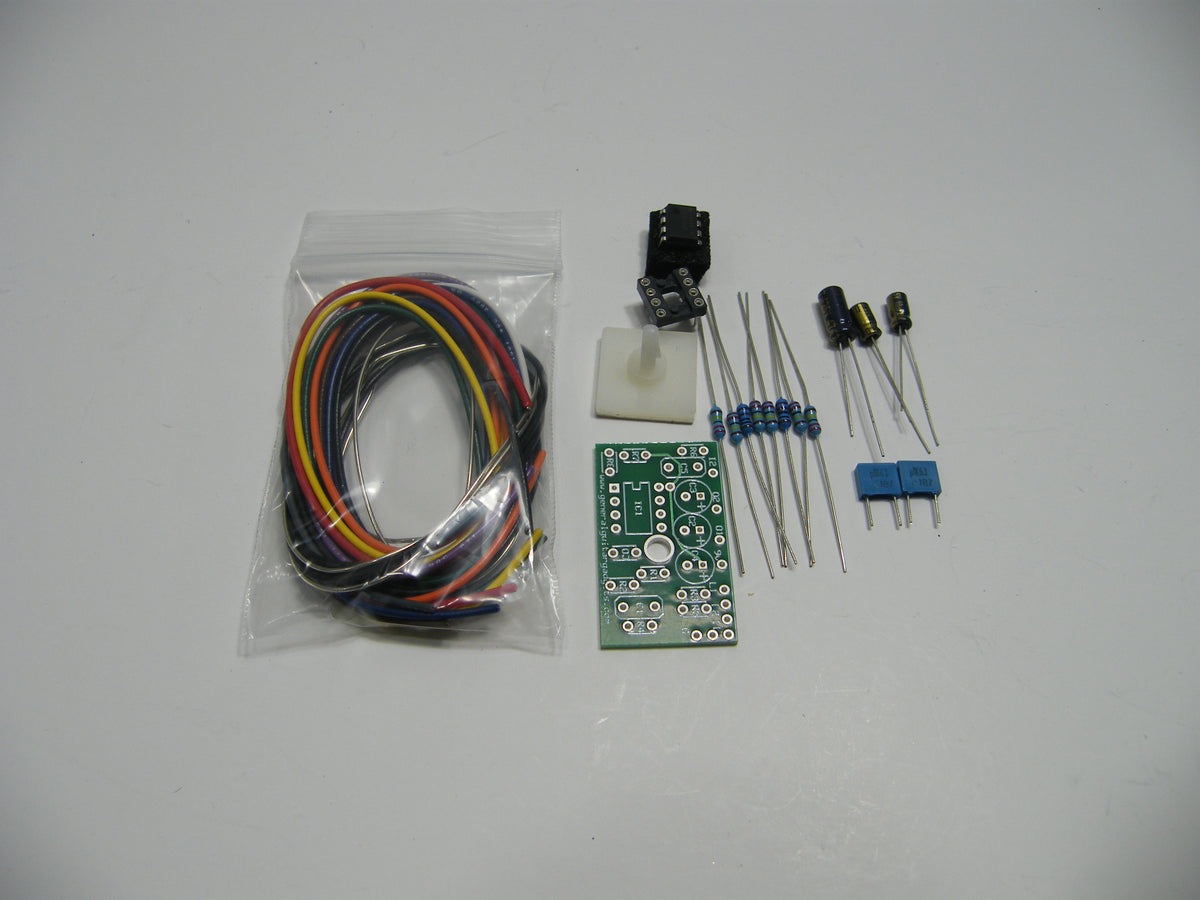

• All the parts to build two buffers on a single circuit board
• No enclosure; this is an add-on for your own box or one of our switcher kits
• General information about our kits

Build resources

• Instructions for this kit
• Dual IC Buffer instructions, bill of materials and A/B/Y wiring diagram
