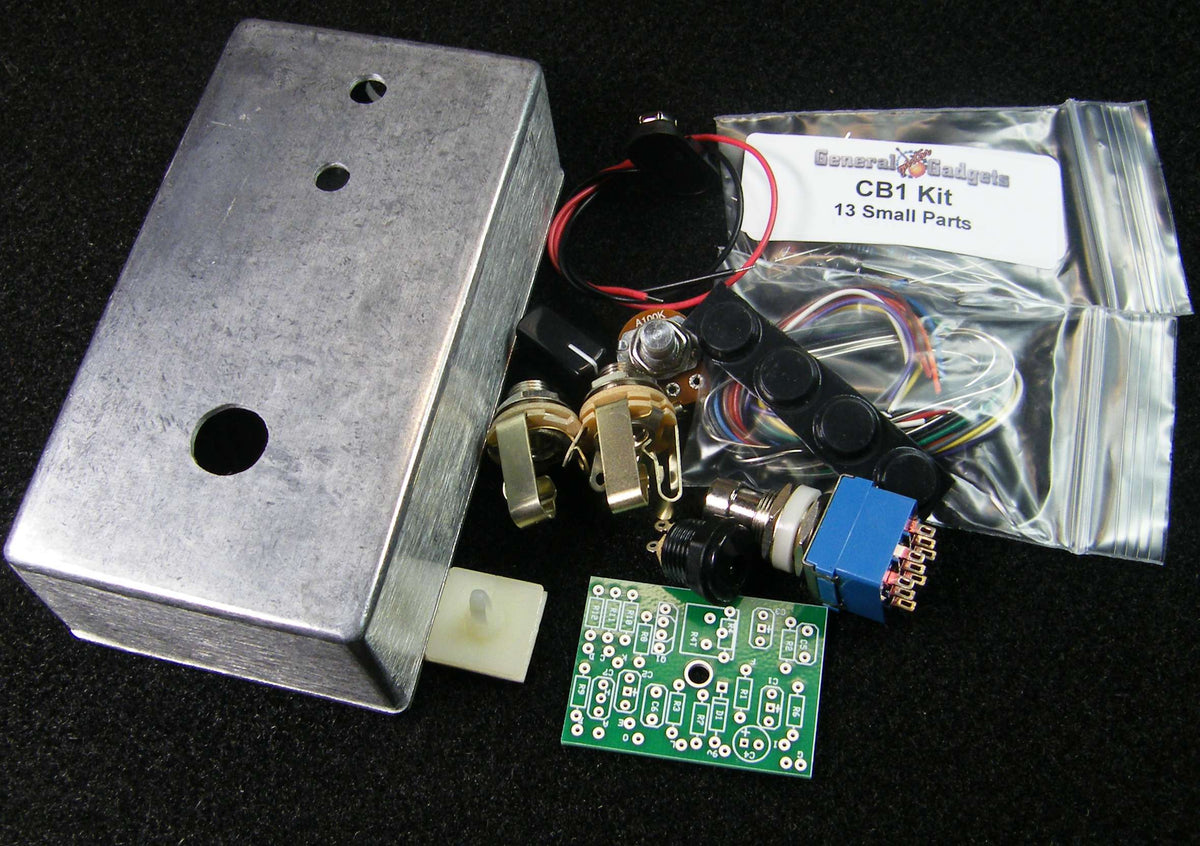

EHX™ LPB2™ REPLICA COMPLETE KIT

A complete kit for the CB1, our replica of the vintage Electro-Harmonix™ LPB2™: a great sounding, simple, clean booster.

About the effect

The Electro-Harmonix™ Linear Power Booster came in two forms: the LPB1™ plugged straight into the guitar, and the LPB2™ was a stompbox. They share the same circuit and differ only in enclosure and switch. The original LPB1™ was wired point-to-point, with parts held mostly by their solder joints. Our CB1 (Clean Boost 1) is a stompbox version like the LPB2™, on a proper PCB.

A popular modification moves the volume control to the front of the circuit, which tames harsh distortion; schematics and layouts for this input volume version are on the project page along with other mod notes.

What you get

• All the parts and materials you need to build one, including the PCB
• Kit-wide standards: true bypass switching, RoHS parts, a double-sided PCB with plated-through pads, Switchcraft jacks and a solid plastic battery snap
• General information about our kits

Enclosure options:

• 125B: 125B enclosure spec sheet
• 1590B: the smaller enclosure; 1590B enclosure spec sheet
• No Enclosure: the kit without an enclosure, for builders supplying their own

Build resources

• Complete instructions for this kit
• CB1 modifications information and input volume parts layout
• CB1 (LPB2™ replica) demo video
