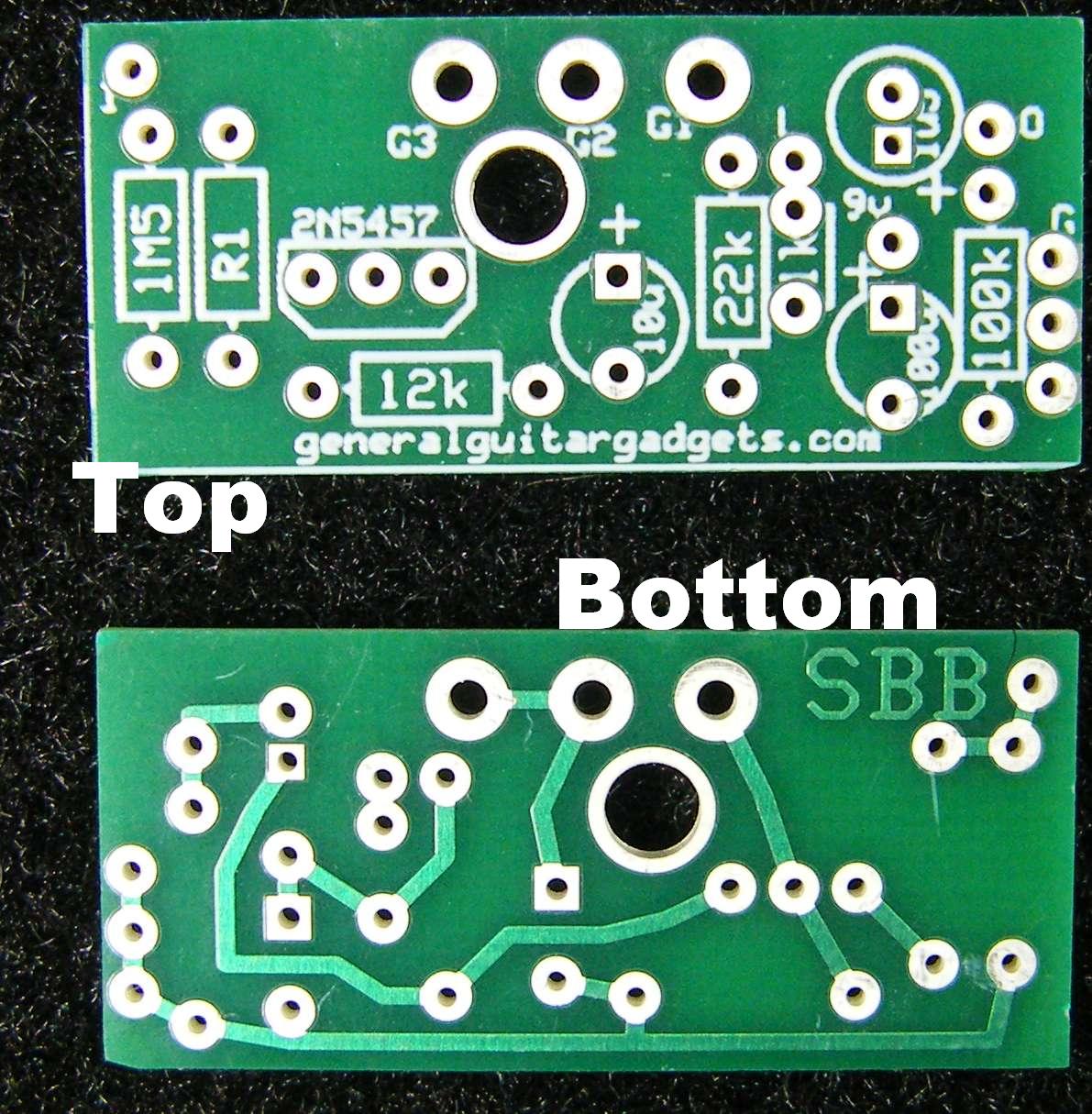

ALEMBIC™ STRATOBLASTER™ REPLICA RTS PCB

The ready-to-solder PCB for an Alembic™ Stratoblaster™ booster replica: a classic single-stage JFET boost that is small enough to mount inside a guitar cavity or in a stompbox.

About the effect

The Stratoblaster™ is a compact clean booster originally designed to live inside the guitar. It gives you that classic single-stage JFET boost sound and is great for pushing a tube amp or a distortion stompbox into overdrive. This PCB is designed for use in a stompbox but is still small enough to mount in a guitar cavity, and the project includes separate parts layouts for stompbox and guitar-mount builds.

Want everything in one bag? The Stratoblaster™ Replica complete kit includes this PCB. Watch a YouTube video of the kit.

Specs

• PCB size: 4.0 cm x 1.8 cm
• Plated-through holes and lead-free solder tinning
• Accepts a 16 mm PCB-mount potentiometer, right-angle or straight pin

Build resources

• Complete instructions for this PCB
• Project instructions (PDF)
• Schematic (PDF)
• Parts layout (PDF)
• Parts layout for guitar mount (PDF)
