Tube Screamer TS808 Replica Complete Kit: DIY Overdrive Pedal

Name: Tube Screamer TS808 Replica Complete Kit: DIY Overdrive Pedal
Brand: General Guitar Gadgets
SKU: ITS8 KIT-1590B-Kit With No Modification Options
Availability: InStock

$67.00 USD

Sale Sold out

Shipping calculated at checkout.

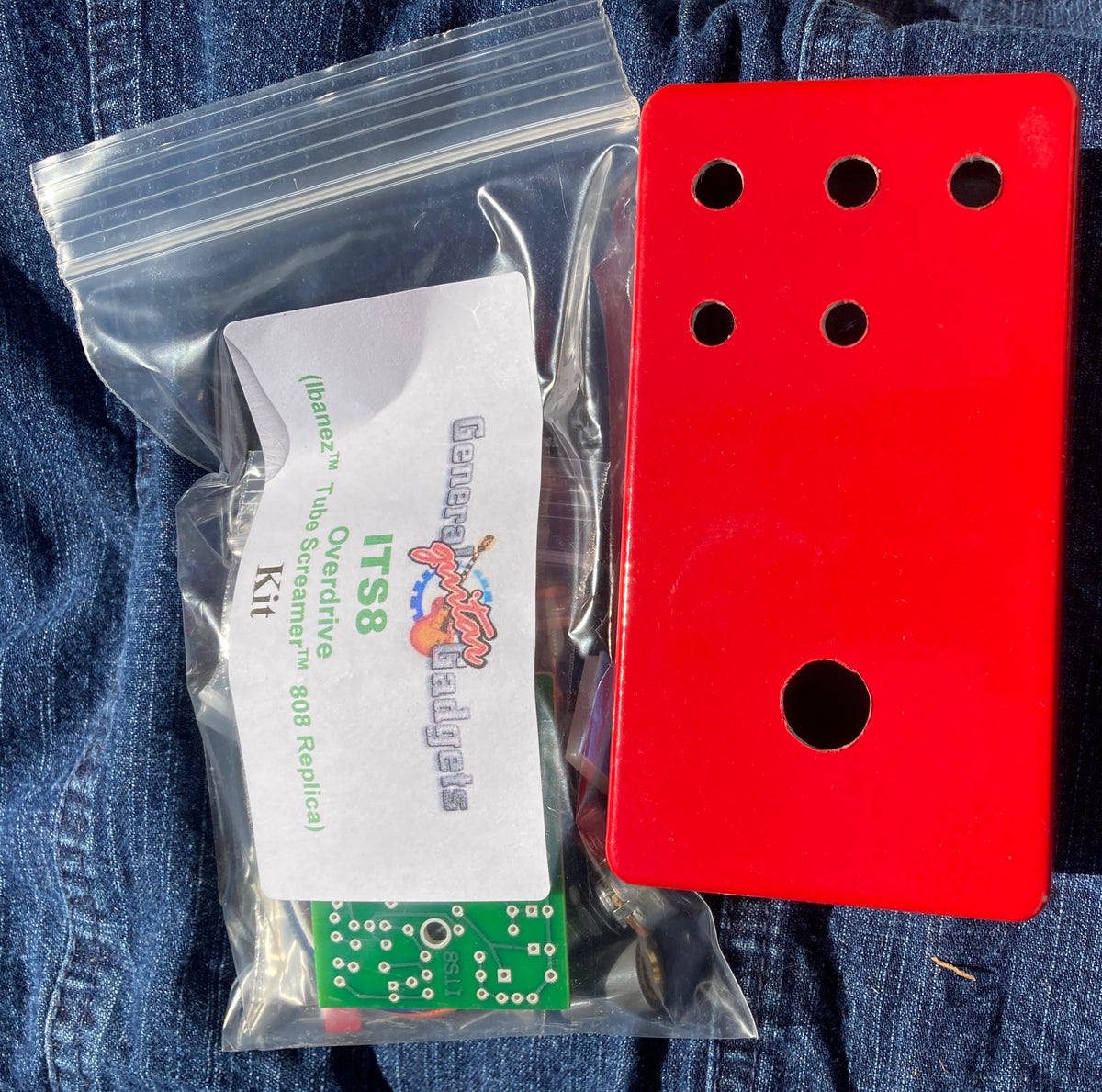

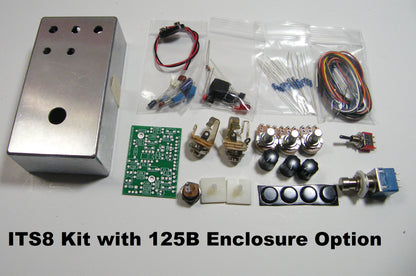

The ITS8 is a complete kit for building your own replica of the Ibanez™ Tube Screamer™ TS-808™, the most famous overdrive pedal of all time. It includes the printed circuit board and every part you need, and you choose a pre-drilled enclosure (125B, 1590B or 1590BB) or no enclosure when you order.

Who it's for: musicians who want a classic, warm, mid-focused overdrive they built themselves, and experienced builders who want a proven board for trying clipping and op-amp mods. It solves a simple problem: original TS-808s and boutique modded versions are expensive, and this kit gets you the same circuit, with the popular mods available as an option, for a fraction of the price.

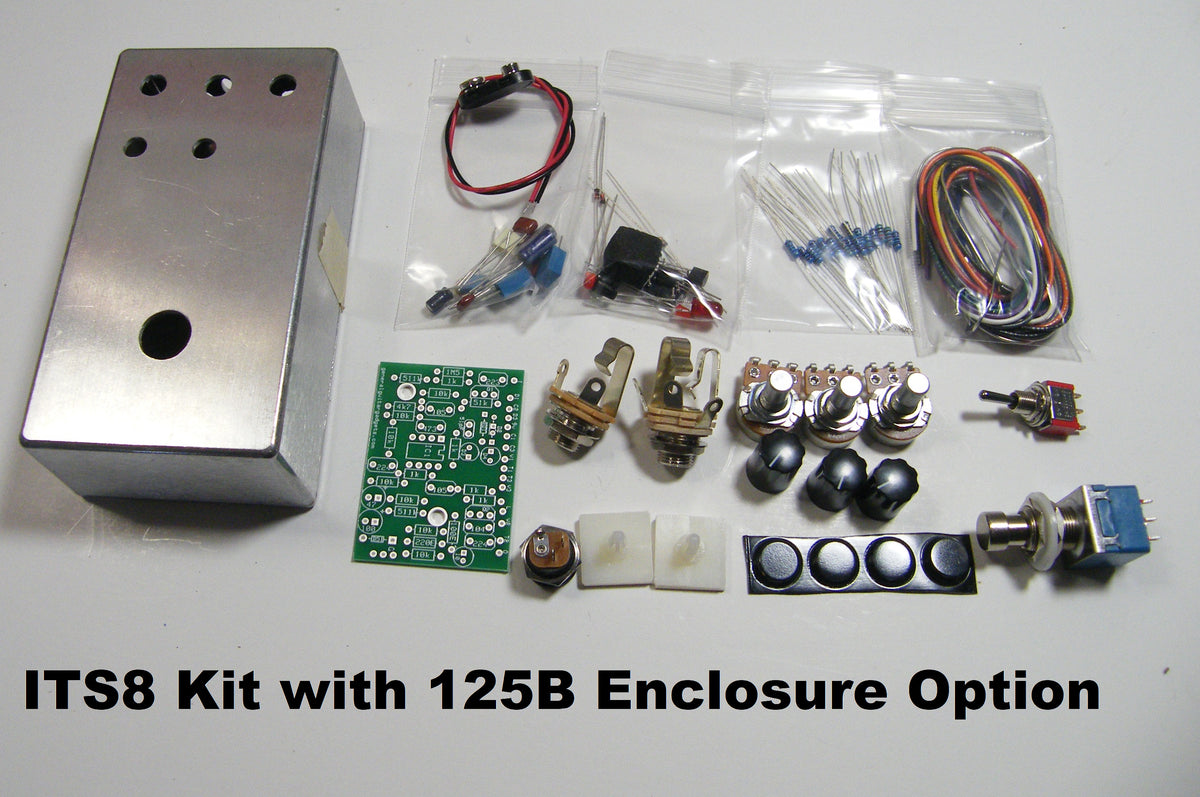

What's included

Ready-to-solder, double-sided PCB with plated-through holes
JRC4558D op-amp with a Mill-Max IC socket, transistors, 1% metal film resistors and quality capacitors
Drive, Tone and Level pots, including the 20k "EQ" taper tone pot like the original, and knobs
On-off-on toggle switch to choose silicon diode or red LED clipping, with the center position as a clean booster (the enclosure is pre-drilled for it)
Heavy-duty 3PDT true-bypass footswitch with LED indicator
Switchcraft input and output jacks, DC power jack, solid battery snap and 24 gauge stranded wire
Pre-drilled enclosure in the size you choose (or none)

Not included: a 9V battery or power adapter, and your soldering tools. The original's FET switching is replaced by true bypass, which has no effect on the sound. The board also supports Boss™ SD-1™ and MXR™ ZW-44™ versions. Special note: the 1590B enclosure has no room for the clipper toggle switch.

ITS8 mod option

Choose "Kit With Modification Options" to add the parts for the Keeley mod or the "Very Expensive Boutique" mod, plus extra ICs and clippers to fine-tune your sound:

1 - LF353P IC
1 - RC4558P IC
1 - 8-pin socket
1 - 1 meg audio taper pot (Drive)
1 - 1k resistor
1 - 2k4 (2.4k) resistor
1 - 10k resistor
1 - 20k resistor
1 - 0.1uF capacitor
1 - 0.18uF capacitor
1 - 0.22uF capacitor

Instructions, sound samples and more

Complete instructions for this kit (free: schematic, parts layout, wiring diagram and modifications)
ITS8 modifications (PDF) and schematic (PDF)
Sound Sample 1 - ITS8 with "Very Expensive Boutique Mods"
Sound Sample 2 - ITS8 with "Very Expensive Boutique Mods"
ITS8 with Expensive Boutique Mods YouTube Sample 1
Related kit: the ITS8 kit with a 6-way diode selector
General information about our kits

The Tube Screamer: a short history

A short film on the pedal this kit recreates, by five watt world.

Enclosure specification sheets: 125B, 1590B (smaller), 1590BB (larger).

Photos include this kit built in the Twisted Screamer casing. Trademarks belong to their owners and not to General Guitar Gadgets.

View full details

Tube Screamer TS808 Replica Complete Kit: DIY Overdrive Pedal

One kit. 2 choices.

Pick the its8 you want when you order.

Kit With Modification Options

From $64.00

Kit With No Modification Options

From $55.00

Tube Screamer TS808 Replica Complete Kit: DIY Overdrive Pedal

Free build documents

Every project comes with free instructions online, so you can read through the build before you order.

Instructions

Step-by-step build guide

Schematic

The full circuit, part by part

Parts layout

Where every part goes on the PCB

Wiring diagram

Jacks, switch, pots and power

Open the project page →

Instructions, schematic, parts layout, wiring diagram and mod ideas on generalguitargadgets.com

Back to ordering ↑

Trademarks mentioned belong to their owners and not to General Guitar Gadgets.

Questions builders ask

Tube Screamer™ kit FAQ

Do I need experience to build this Tube Screamer kit?

You need to be comfortable soldering, but you don't need to be an expert. Free step-by-step instructions, the schematic, parts layout and wiring diagram are on the Tube Screamer project page, so you can read through the whole build before you order, and we answer build questions by email.

What comes in the kit, and what do I need to supply?

The kit includes the PCB, every electronic part, the pots and knobs, the clipper toggle switch, a 3PDT true-bypass footswitch with LED, Switchcraft jacks, a DC power jack, battery snap, wire, and the pre-drilled enclosure you choose. You supply a 9V battery or power adapter and your soldering tools.

Which enclosure should I choose?

The 125B is the classic pedalboard-friendly size and is drilled for the clipper toggle. The 1590BB is larger, with more room for wiring and mods. The 1590B is the smallest, but it has no room for the clipper toggle switch. Choose No Enclosure if you have a box of your own.

What does the modification option add?

It adds the parts for the Keeley mod or the "Very Expensive Boutique" mod: LF353P and RC4558P ICs, an 8-pin socket, a 1 meg audio taper Drive pot, and extra resistors and capacitors to fine-tune your sound. It adds $9 to the kit price.

Does it sound like an original TS-808?

It is a replica of the TS-808 circuit, with the JRC4558D op-amp and a 20k "EQ" taper tone pot like the original. The original's FET switching is replaced by a true-bypass footswitch, which has no effect on the sound.

How fast do you ship, and can I return a kit?

We usually ship within 1-2 business days, and delivery time depends on the carrier and your area. A kit can be returned for your money back as long as it is complete and unsoldered.
