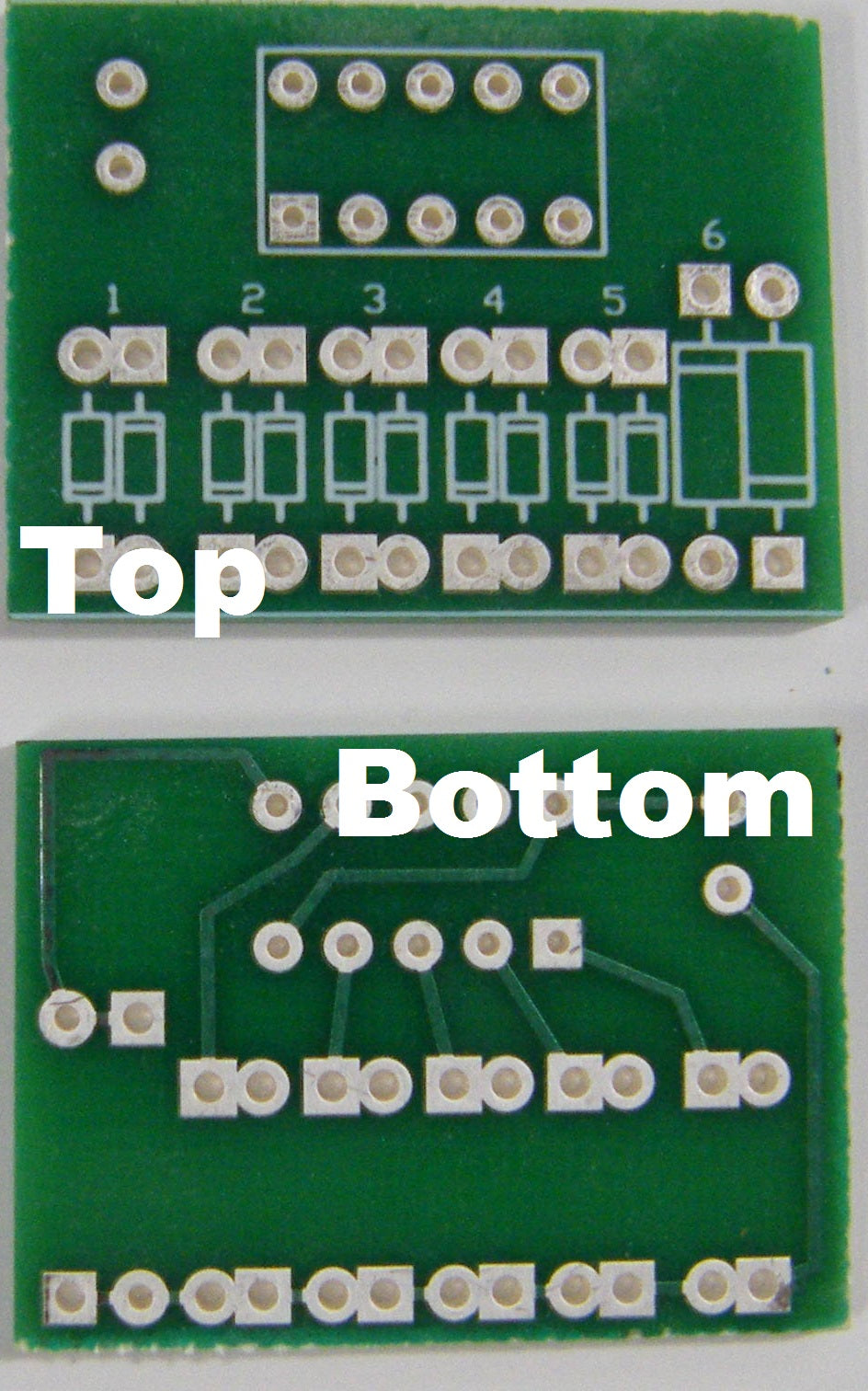

DIODE SELECTOR PRINTED CIRCUIT BOARD

Printed Circuit Board for a PCB 6-way selector switch to switch in 6 different pairs of diode clippers. LEDs and FET clippers can also be used. PCB is 3.1cm x 2.4cm.

Here are the Instructions for using this PCB
