MXR™ PHASE 90™ REPLICA COMPLETE KIT

A complete kit for an MXR™ Phase 90™ replica (script logo version), a very cool phase shifter with a beautiful, rich sound. Includes a matched set of JFETs.

About the effect

The Phase 90™ is the classic one-knob phaser heard on countless records since the 1970s. This replica follows the early script logo version, and our layout is very similar to the original MXR™ layout. We used 741 op-amps, which seem to be part of the "magic" in the sound of the old script logo units.

This kit is NOT for beginners or inexperienced builders.

What you get

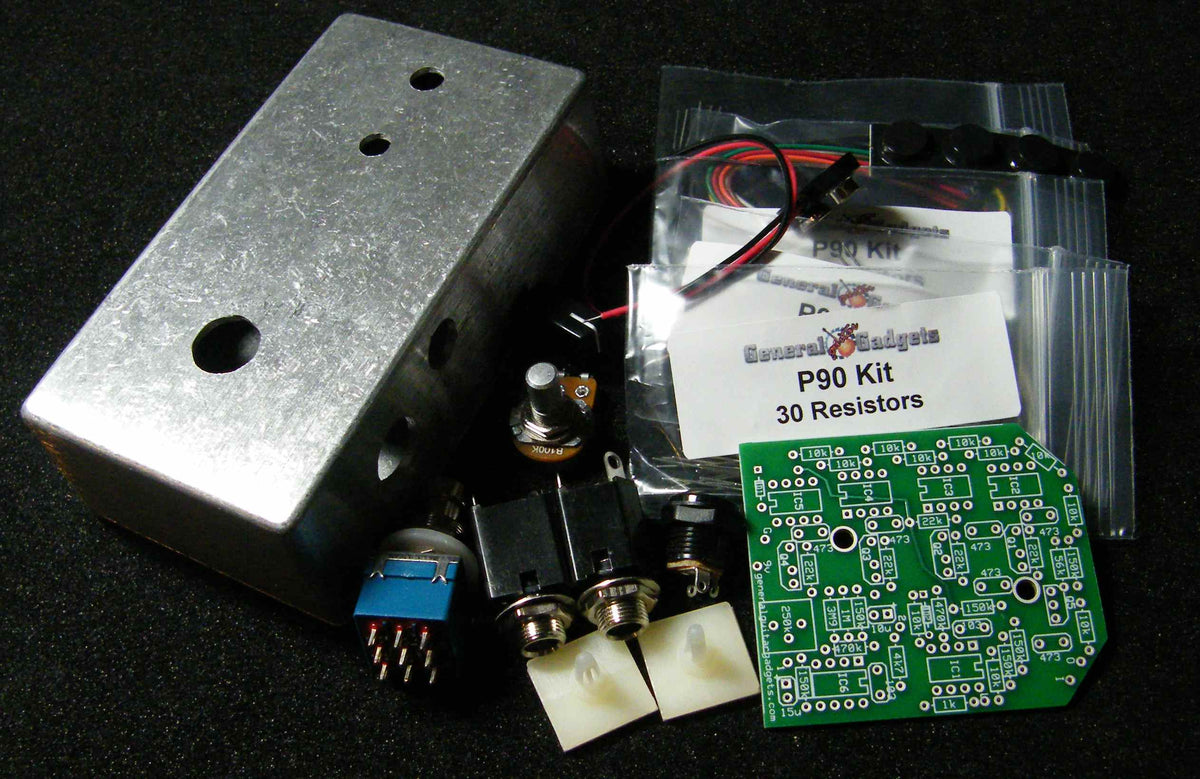

• All the parts and materials you need to build a Phase 90™ (script logo version), including the PCB
• A matched set of JFET transistors selected for the best sound possible
• 1590B: includes the small 1590B enclosure. Due to the size and shape of the PCB, the 1590B is the only enclosure offered.
• No Enclosure: everything except the enclosure

Click here for more general information about the kits.

Build resources

• Complete instructions for this kit
• P90 build instructions (PDF)
• Bill of materials (PDF)
• Schematic (PDF)
• Parts layout and wiring diagram (PDF)

Trademarks mentioned here belong to their owners, not General Guitar Gadgets.
