MAESTRO™ FILTER SAMPLE/HOLD REPLICA KIT

A complete kit for a Maestro™ Filter Sample/Hold replica: a synthesizer-style voltage controlled filter and a sample and hold module in one stompbox for guitar, bass and other instruments.

About the effect

This is a synthesizer Voltage Controlled Filter module (envelope filter) and a Sample & Hold module in a stompbox. It's exactly the same circuit as the Oberheim Voltage Controlled Filter. The envelope filter works very well with guitar and bass, and a sample and hold is something you rarely find in a guitar pedal. Note that the Sample/Hold works best on sustained sounds, so using it with a compressor or a heavily sustained guitar sound is recommended.

The schematic lists a 2N3904 for the noise transistor (Q4), but the kit uses a BC182L: GGG found a batch of BC182Ls with noticeable hiss that makes them the best noise source they've tried. The project page also offers a schematic with Tonda's modifications, some of which work on the existing board. Thanks go to Rick Lawerence, R.G. Keen and Aron Nelson.

What you get

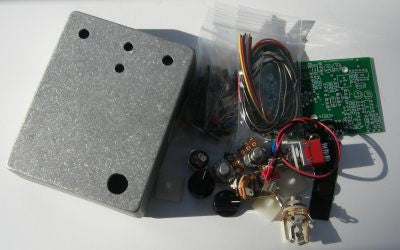

The kit includes all the parts and materials you need to build one, including the PCB.

Enclosure options:

• 1590BB: the larger enclosure, drilled per the specification sheet below.
• No Enclosure: all the kit parts without the box, for builders who want to use their own enclosure.

Build resources

• Complete instructions and information to build this kit
• FSH instructions (PDF)
• FSH schematic (PDF)
• Schematic with Tonda's mods (PDF)
• 1590BB enclosure specification sheet
• General information about GGG kits
• FSH demo video on YouTube

Trademarks mentioned here belong to their owners, not General Guitar Gadgets.
