A386 AMP RTS PCB

The ready-to-solder PCB for the A386, a tiny LM386-style practice amp based on the Little Gem design from runoffgroove.com.

About this PCB

The A386 is GGG's PCB for the Little Gem amp, a design from runoffgroove.com. Small chip amps like this are a favorite first project: they make a compact practice amp and can be pushed into a nice, gritty overdrive. The board is small, so it fits easily in a little enclosure or a cigar-box style amp build.

What you get

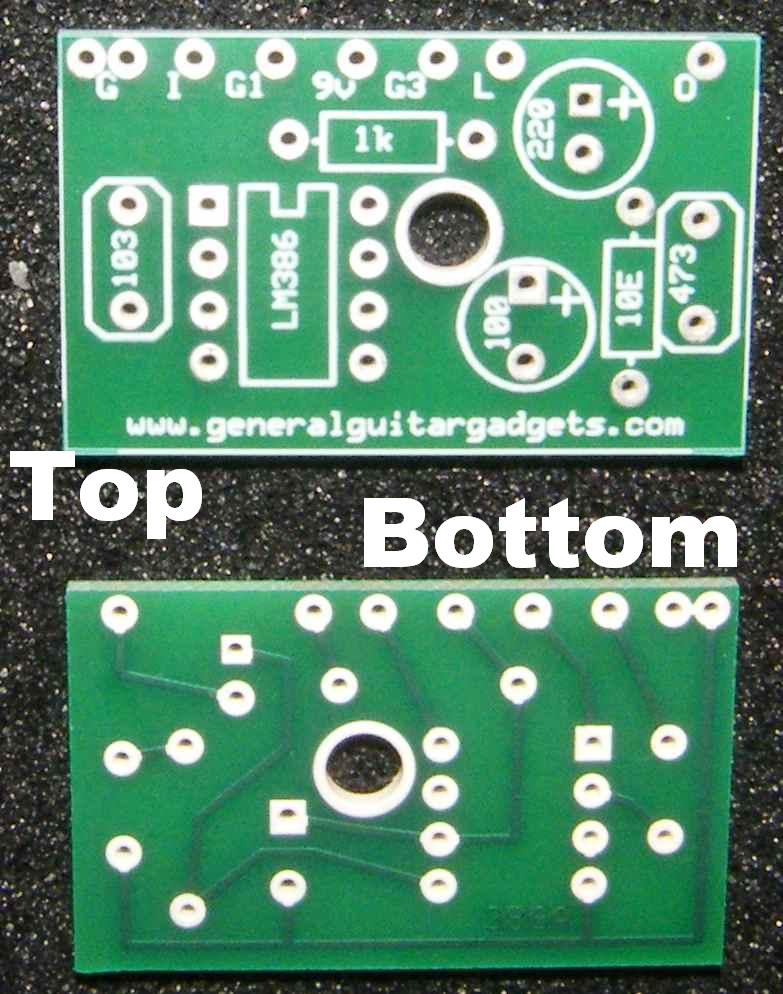

• The A386 RTS (ready-to-solder) printed circuit board

Specs

• PCB size: 3.4cm x 2.0cm
• Solder mask, plated-through holes and silkscreen for component placement

Build resources

• Complete instructions for this PCB
